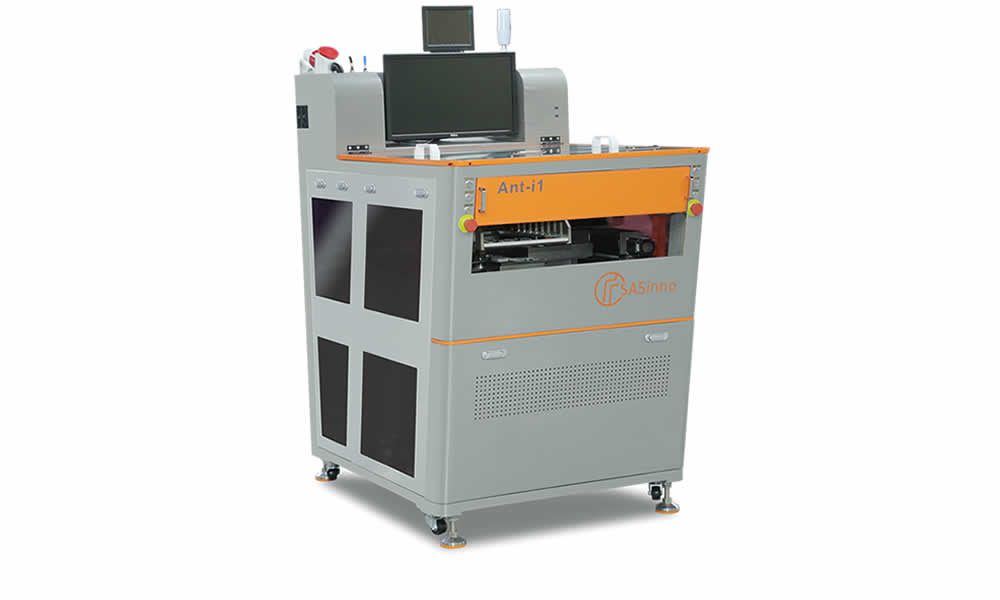

Ant-i1 is an entry-level compact offline selective soldering machine with the following features:

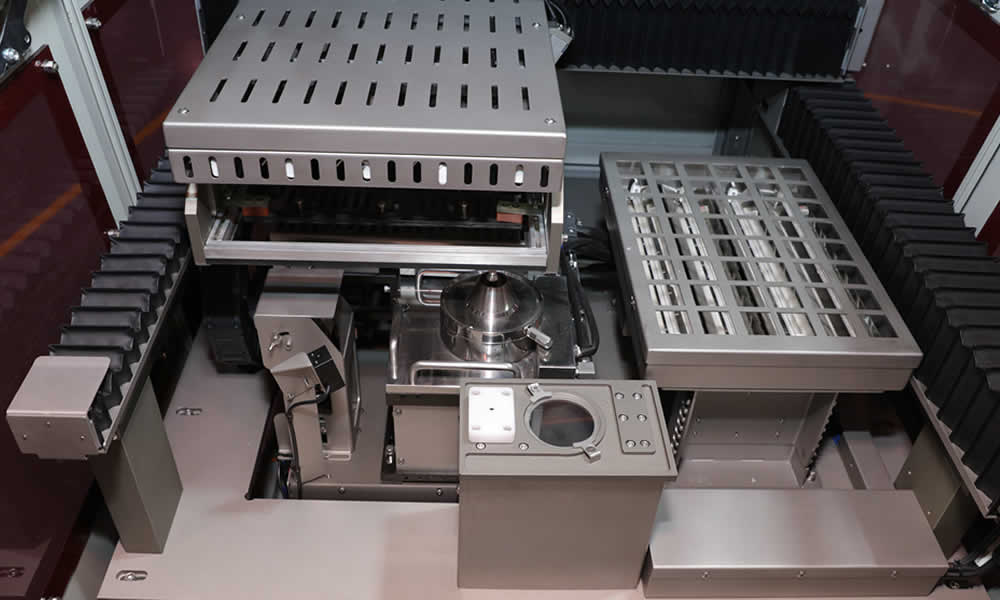

● One drop jet fluxer
● Bottom IR preheating, optional with top preheating zone
● One solder pot with one wave tunnel

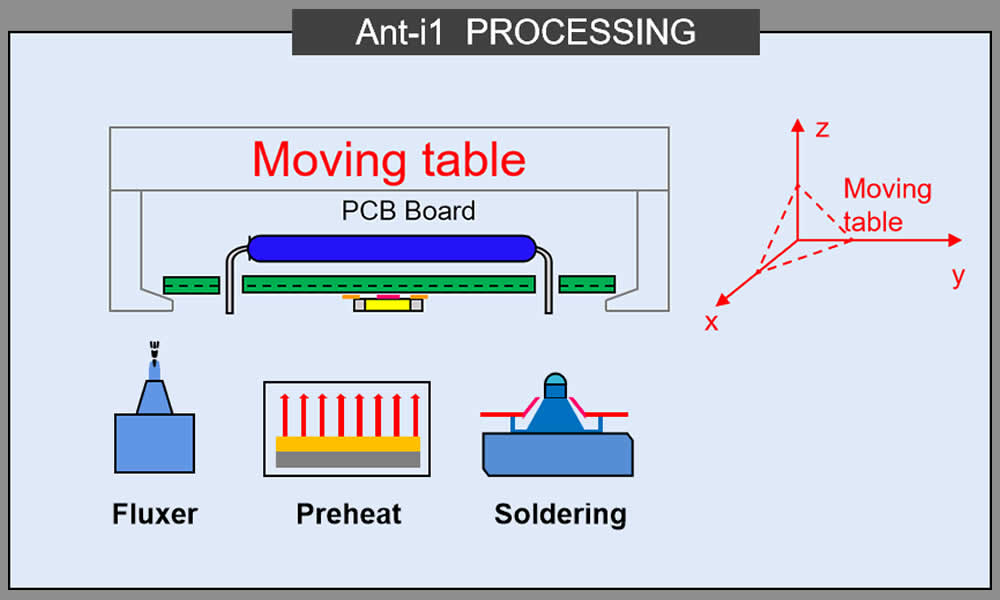

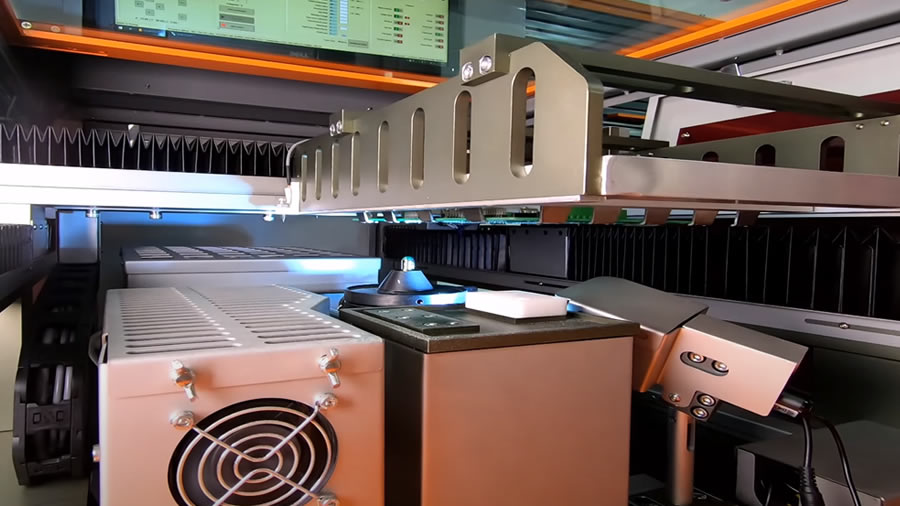

● PCB moves in X/Y while solder pot/fluxer moves in Z
● Single soldering nozzle handles max 350 x 250 mm
● Windows 10 operating system

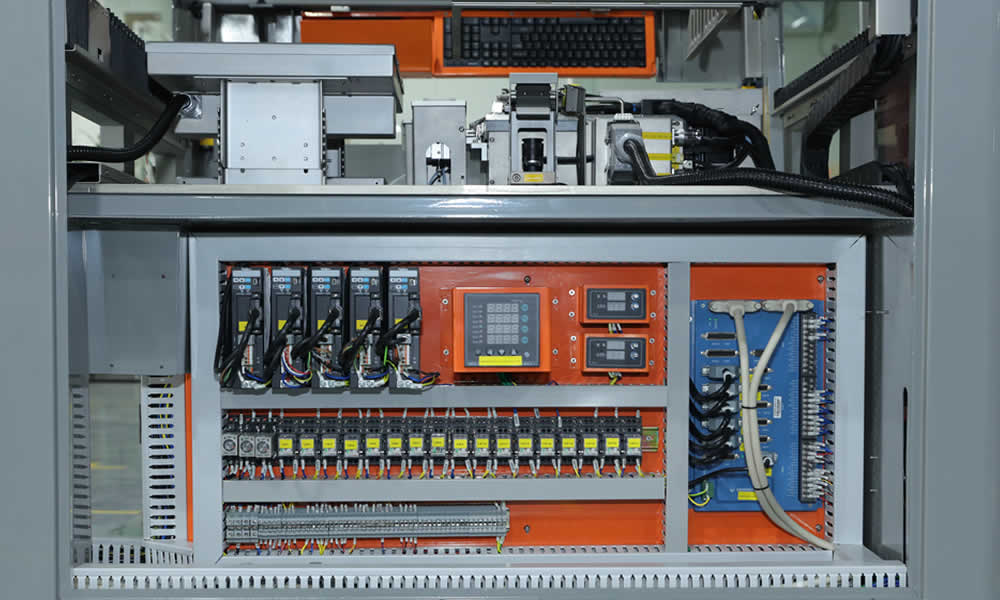

● Three-axis full servo drive with ball screw movement
● Standard equipped with wave height calibration
● Real-time soldering process monitor
| Ant-i1 Offline Selective Soldering Machine Specifications | |
|---|---|
| Item | Ant-i1 |
| General | |
| Operating power/Max power | 4KW/6.5KW |
| PCB dimension | 50x50---350x260mm (Can manually rotate board to 180degree to meet L700mm x W260mm) |

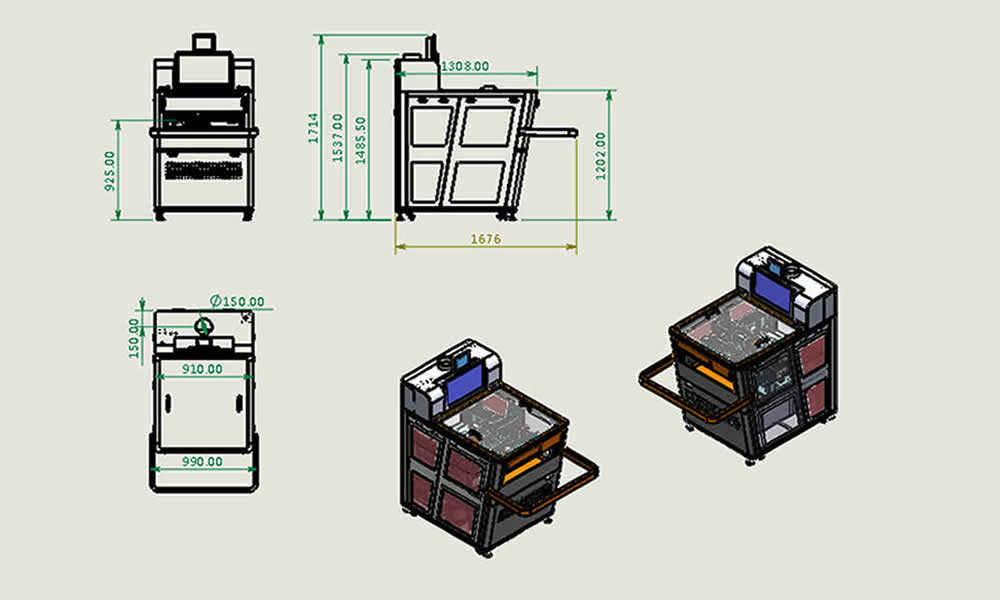

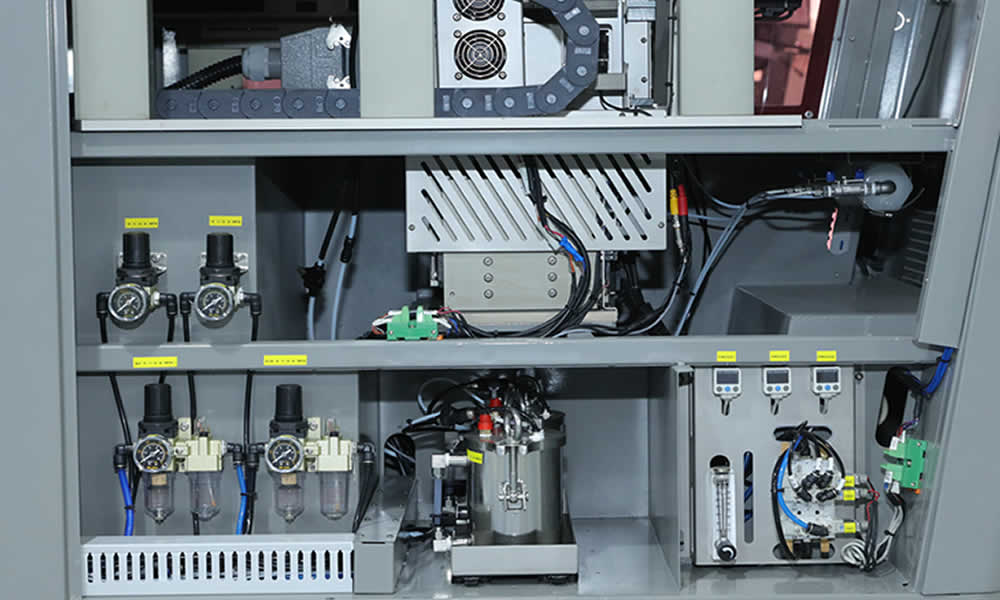

| Machine dimension | W990mm X D1308mm X H1714MM |
| Net weight | 400KG |
| Power supply | 1PH 220V 50HZ MAX 30A Equip 40A contactor in factory |
| Air supply | 3-5 bars |
| Exhausting required | 200M3/h |
| Solder Management | |
| Standard Solder Stations | 1 |
| Solder Pot Capacity | 15 kgs |
| Heat-Up Time | About 40mins |
| Max Temperature | 380 ℃ |
| Solder Pot heater | 1.2kw |
| Solder Nozzles | |
| Mini Wave Nozzles | Dia 2 to 8mm |
| Customized nozzle | Available |
| Nozzle Material | Proprietary Alloy |
| (N2) Inertion Management | |
| N2 heater | Standard Equipped |
| N2 Temp PID Control Range | 0 - 300℃ |
| N2 Consumption per Nozzle | 1.5m3/H |
| Required N2 Purity | >99.99% |
| Flux Management | |
| Spray Flux Nozzle | Standard equipped with drop jet nozzle made in Germany |
| Flux Capacity | 1L |
| Flux Tank | Constant pressure tank |
| Preheat | |
| IR heater | 2kw |
| Controlling System | |
| Industrial PC | Yes |
| Typical Program Time | 10 Minutes |
| Program method | Draw path in scanned picture of board |
| Controlling system | PC |
