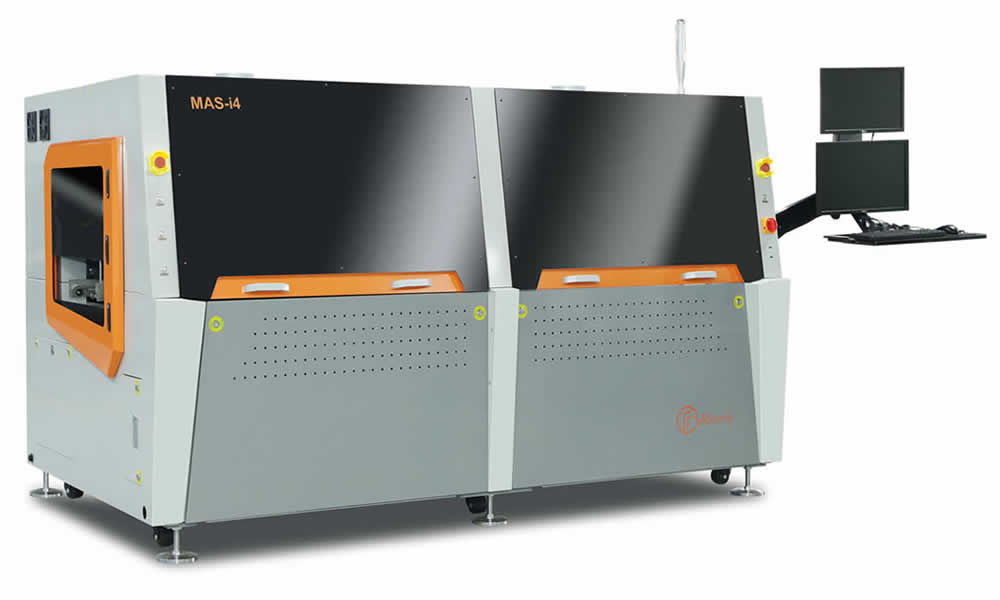

MAS-i4 offers the highest flexibility and output for small boards soldering with the following features:

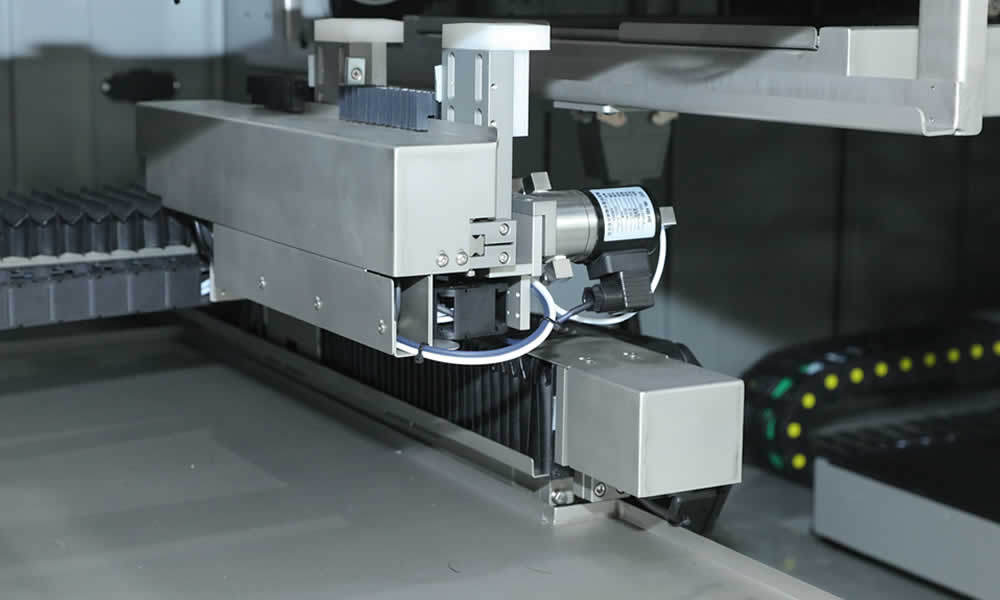

    2 drop jet fluxers as standard

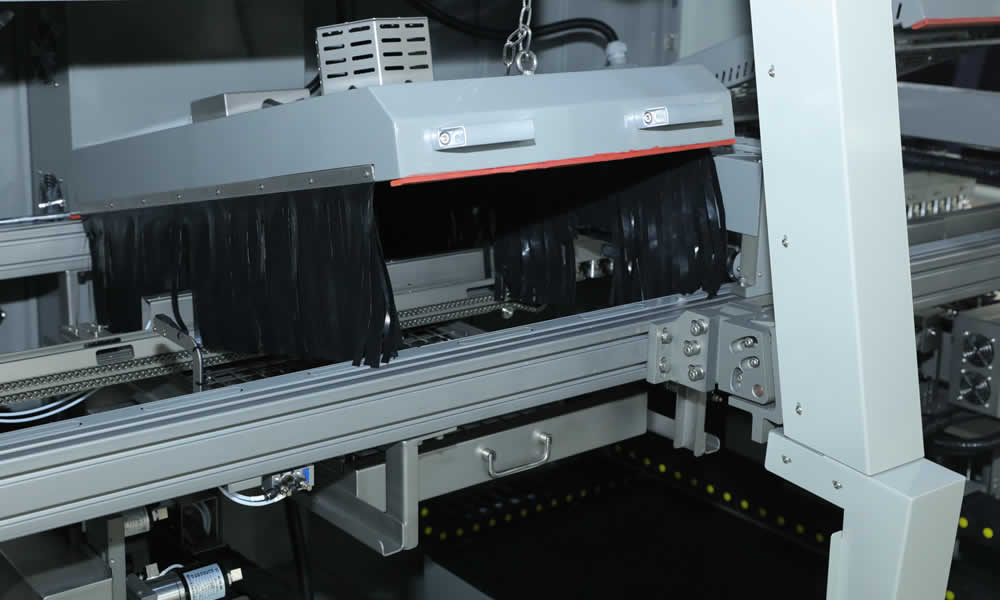

    Bottom IR preheating & top preheating zone

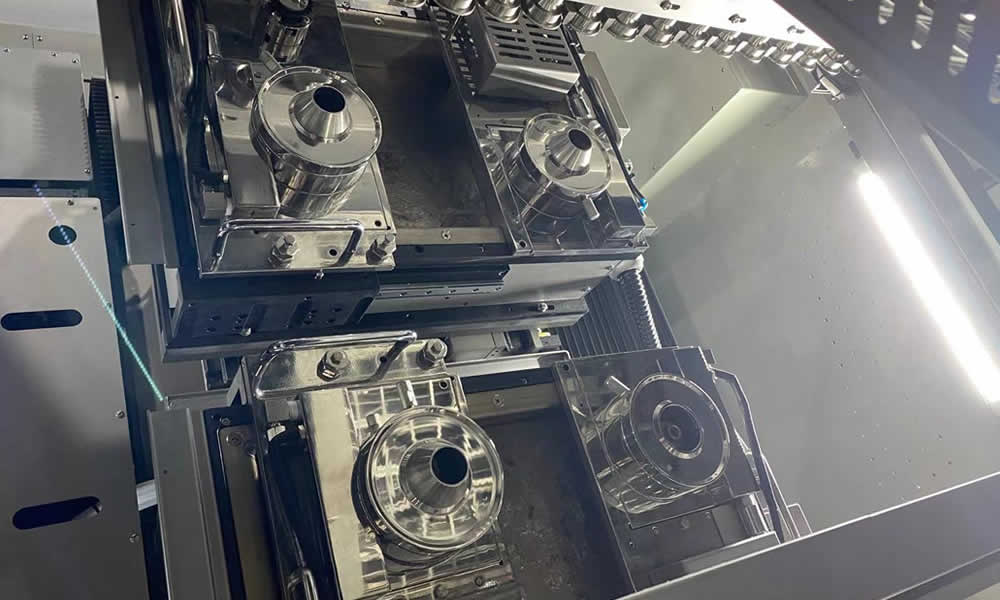

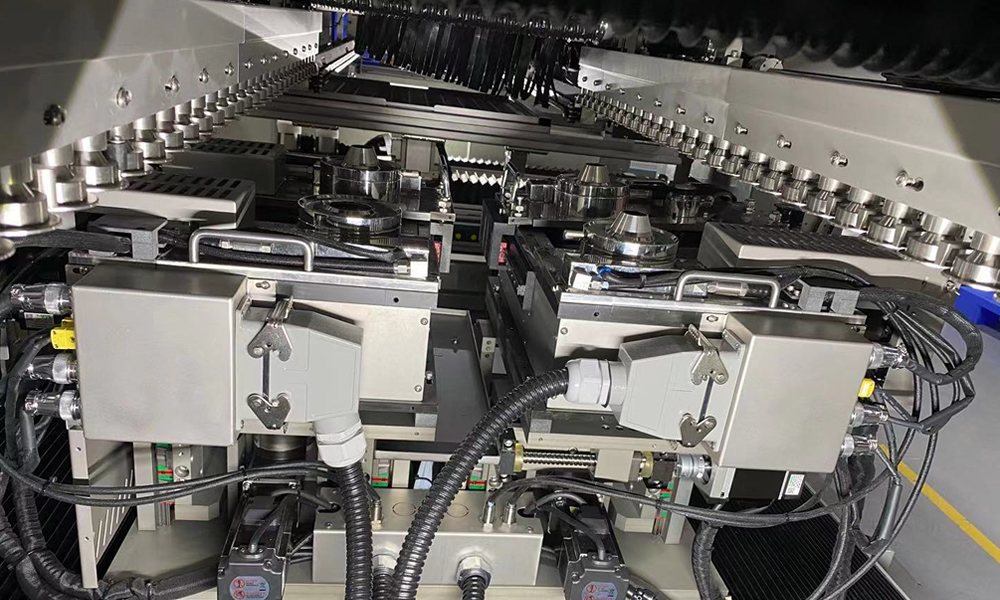

    2 solder pots in individual Z-axis, each with 2 wave tunnels

    3 sections of conveyors

    Fixed PCB conveyor with moving solder pot/fluxer

    All-in-one flux, preheating & soldering

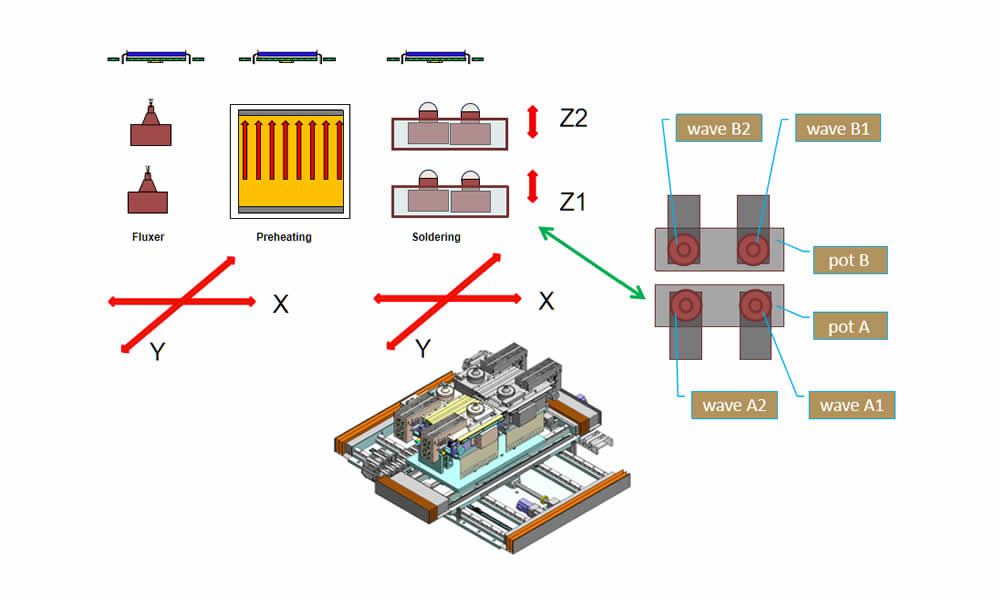

    Flux table with XY motion table, soldering table with X, Y, Z1, Z2 motion table

    Windows 10 system

    Standard equipped with wave height calibration

    Real-time soldering process monitor

MAS-i4 Specifications
    ItemMAS-i4
    General
    Operating power/Max power8KW/25KW
    Conveyor widthMax 510mm
    PCB sizeAs explanation
    PCB top clearance100mm
    PCB bottom clearance35mm
    Machine dimension3360(L)*1750(W)*1650(H)
    Net weight1800KG
    Power supply3PH 380V 50HZ
    Air supply3-5 bars
    Exhausting required800M3/h
    PCYes
    Typical Program Time10 Minutes
    PCB Robotic Platform
    Flux Nozzle Typedrop jet fluxer made in Germany
    Flux Nozzle QuantityStandard equip 2 set
    Flux Tank Capacity1L
    Flux Tank Quantity2pcs
    Flux Nozzle Distancewidth adjustable by software
    Axes of MotionX, Y Servo motor
    Position Accuracy+/- 0.05mm
    preheat
    Preheating methodTop IR preheat,option with bottom preheat
    Solder Management
    Solder pot typeStandard equipped mechanical pump
    Solder pot quantity2 individual sets
    Solder Pot Capacity30kgs/pot x 2pots
    Solder Pot distance240mm--300mm software adjustment
    Solder level alarmstandard equipped
    Wave tunnel2set/pot x 2pots
    Wave distance160--255mm manual adjustment
    Mini Wave NozzlesDia 4, 6, 8, 10, 12MM
    Customized nozzleAvailable
    Axes of MotionPot 1&2 share X, Y.  Pot 1 with Z1, Pot 2 with Z2
    Motion ControlAll servo control with ball screw
    Position Accuracy+/- 0.05mm
    (N2) Inertion Management
    N2 Consumption per Nozzle1.5m3/H, total 6m3/H (recommend to use SELMATE-8)
    Required N2 Purity>99.99%
