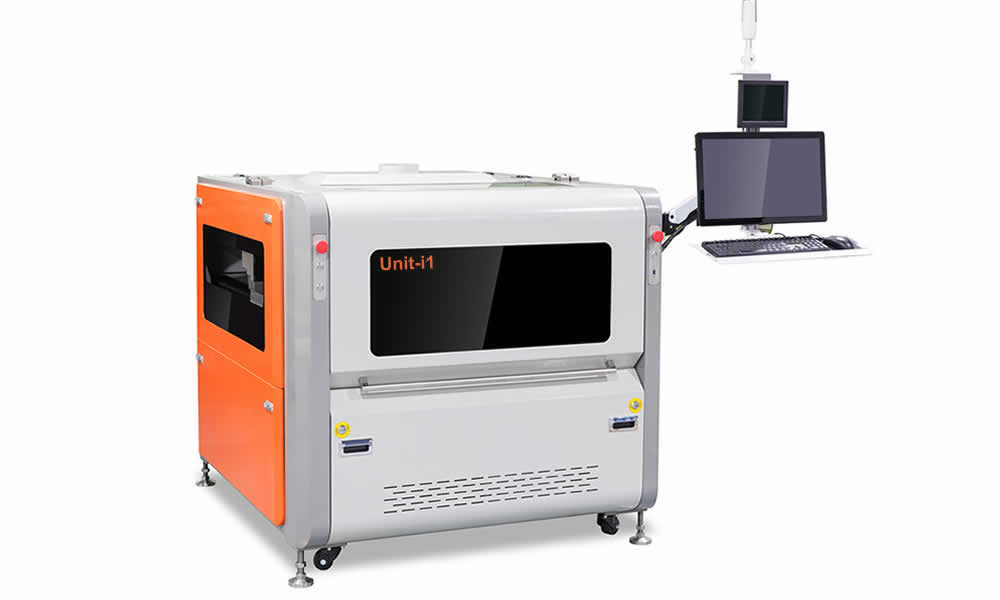

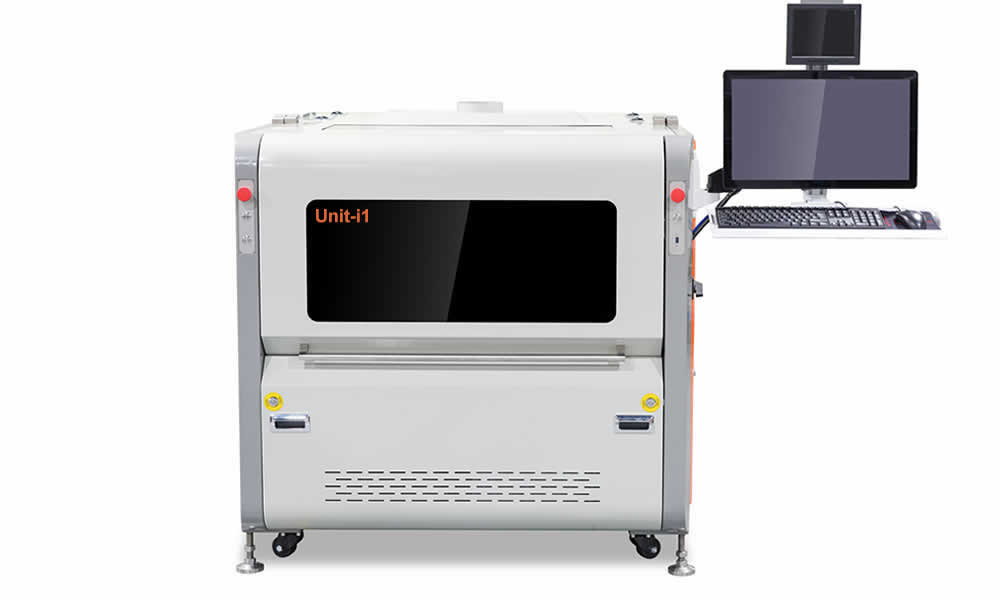

Unit-i1 is an all-in-one compact inline machine with the following features:

    ●   1 drop jet fluxer

    ●   Bottom IR preheating

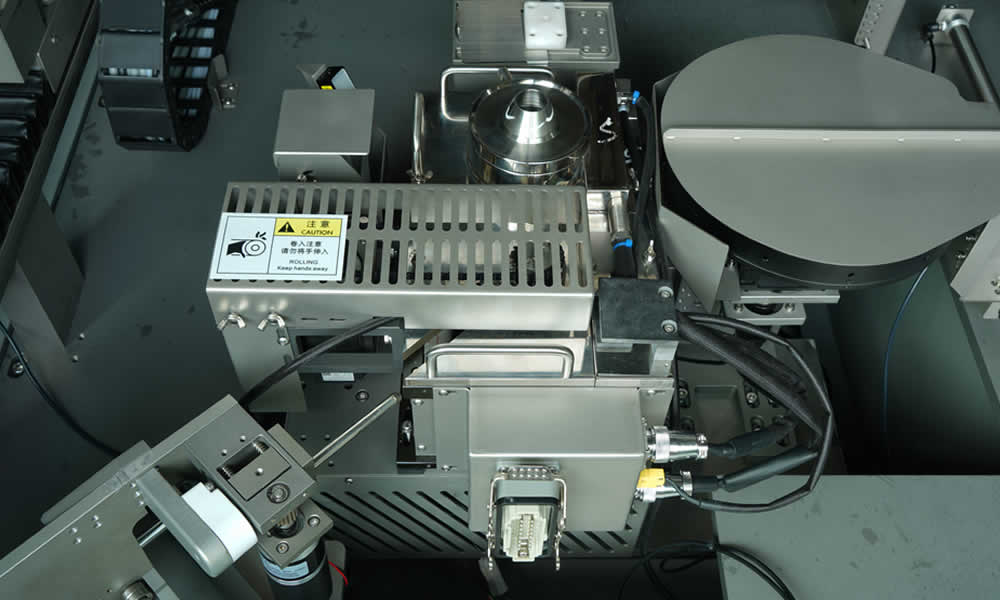

    ●   One solder pot, with one wave tunnel

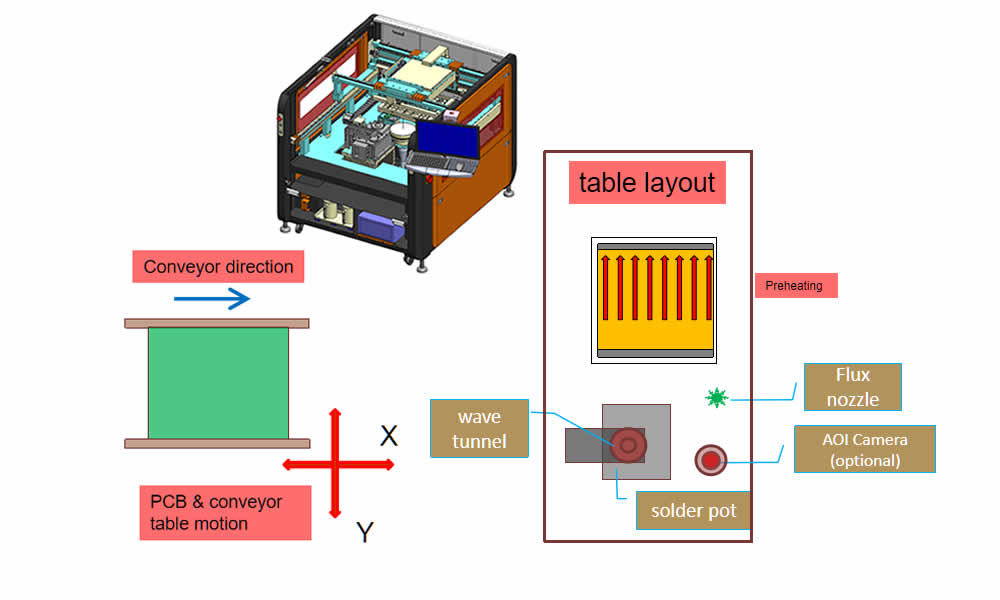

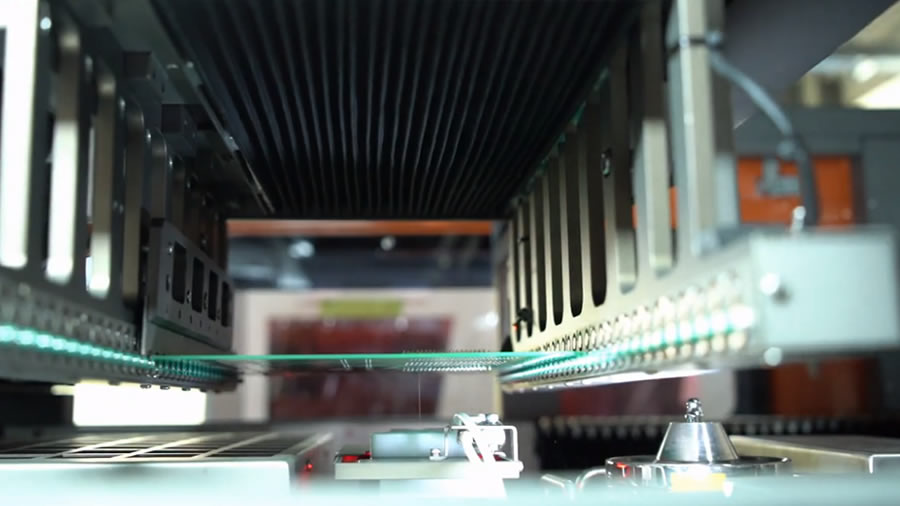

    ●   The PCB is moving by a conveyor, the conveyor table movies in X/Y, the solder pot/fluxer movies in Z

    ●   Windows 10 operating system

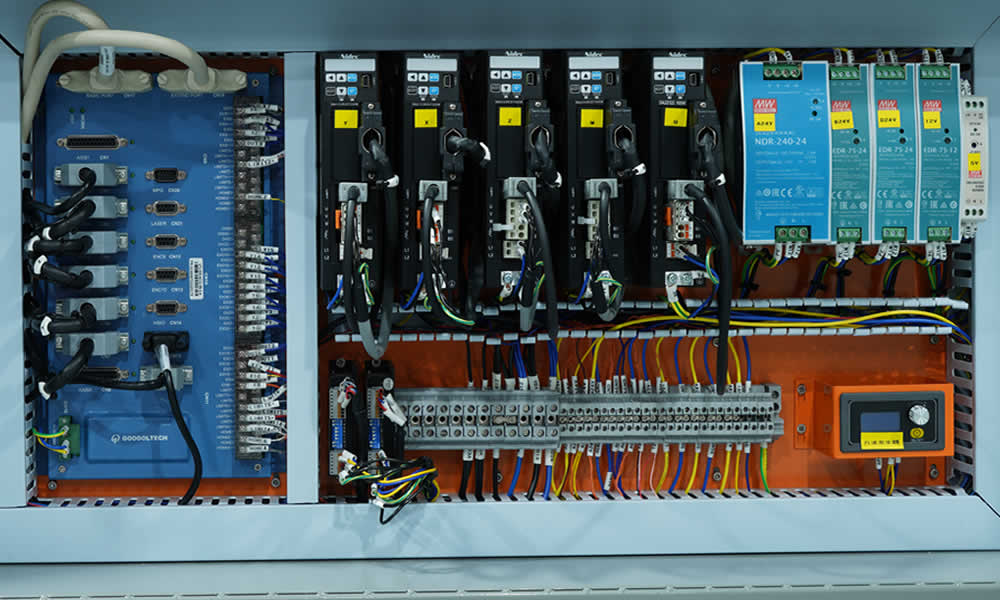

    ●   3-axis full servo drive with ball screw movement

    ●   Standard equipped with wave height calibration

    ●   Real-time soldering process monitor

    ●   Optional built-in AOI inspection function

Unit-i1 Specifications
    Operating power/Max power4KW/6.5KW
    Machine dimension1318(L)*1600(W)*1246(H)
    Net weight400KG
    Power supply3PH 380V 50HZ  Or 1PH 220V
    Air supply3-5 bars
    Exhausting required300M3/h
    Typical Program Time10Minutes
    PCB dimensionW50 x L50---W350xL450mm
    PCB ClearanceTop 100mm bottom 30mm
    PCB WeightMax 5kg
    Conveyor widthAuto
    Conveyor assembling motionX,Y motion with server motor/driver
    Flux Nozzle TypeDrop jet fluxer
    Flux Nozzle Quantity1

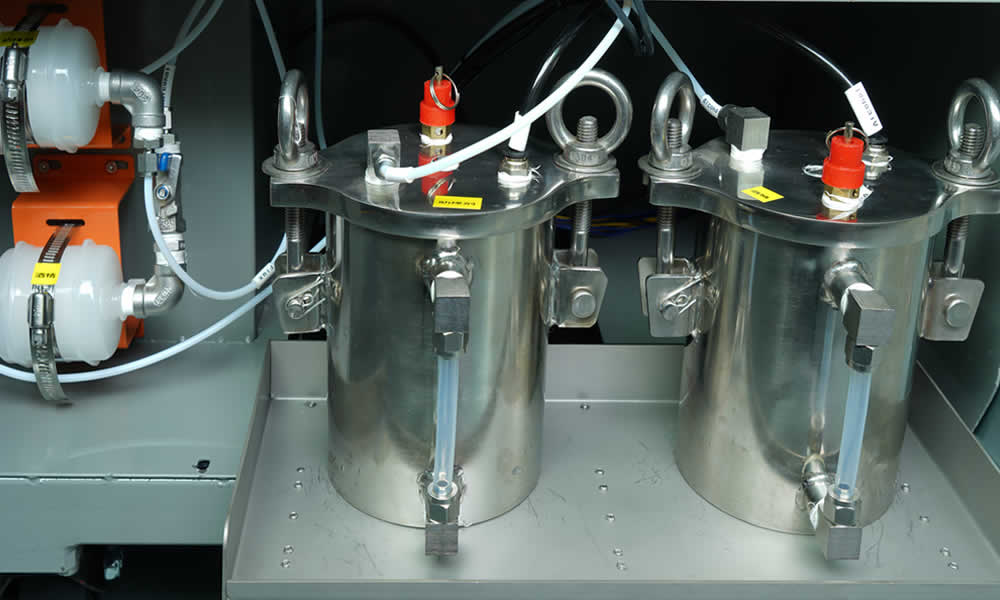

    Flux Tank Capacity1L
    Flux Tank Quantity1

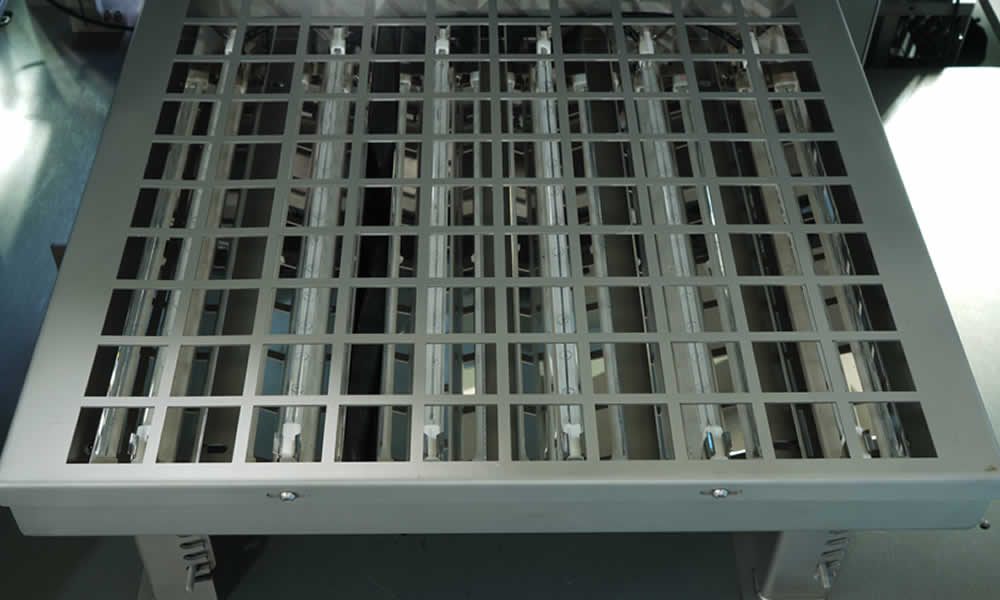

    Preheating methodBottom IR heater

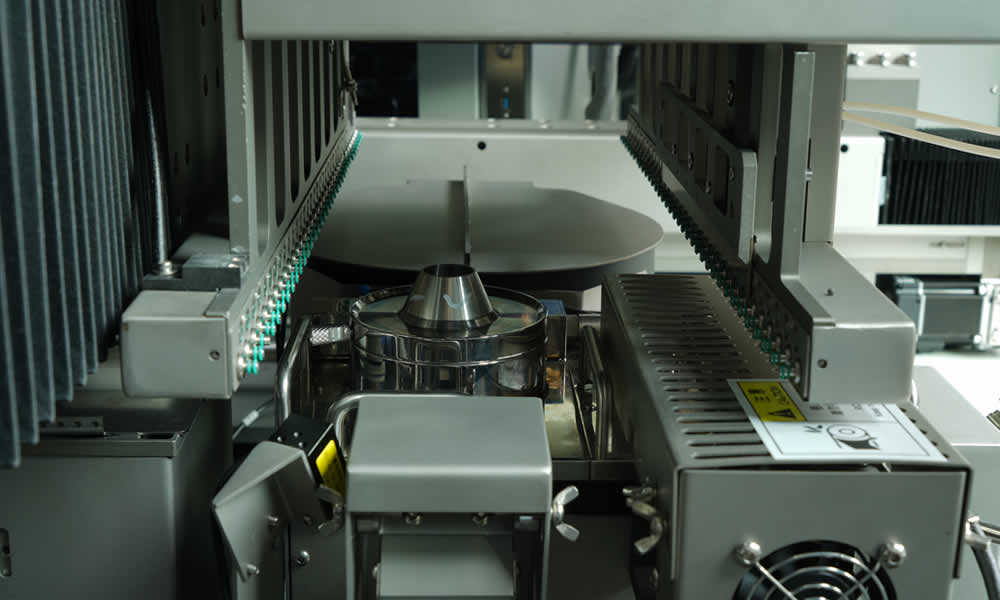

    Solder Management
    Solder pot typemechanical pump
    Standard Solder Stations1
    Solder Pot Capacity15 kgs
    Solder Temperature ControlPID
    Heat-Up TimeAbout 30mins
    Max Temperature350℃
    Wave tunnel1pcs
    Mini Wave NozzlesDia 3 to12mm
    Customized nozzleAvailable
    Axes of MotionZ
    (N2) Inertion Management
    N2 Consumption per Nozzle1.5 m3/H
    Required N2 Purity>99.99%

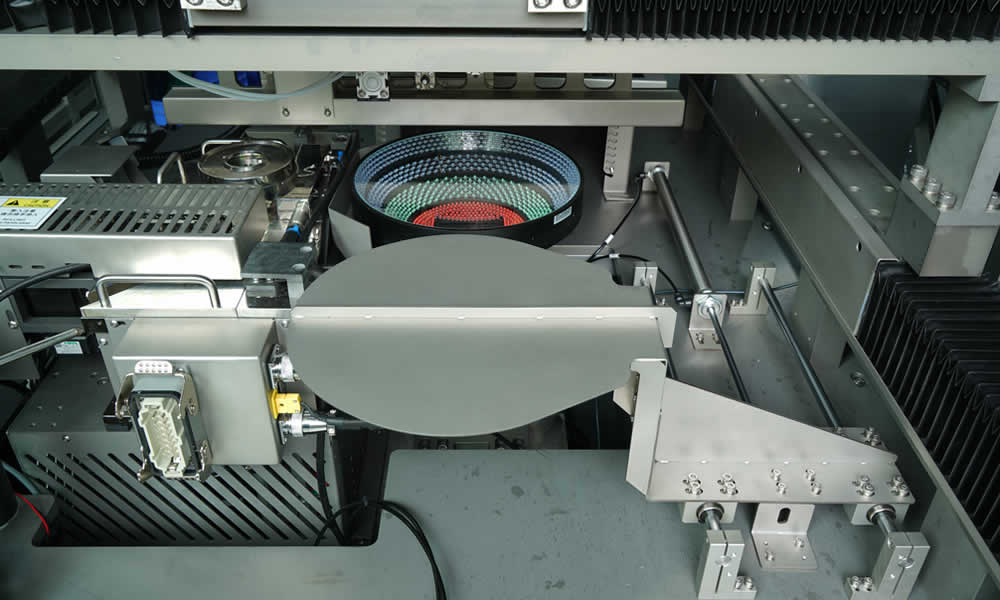

    AOI Insepection
    Camera5 mega pixels
    Lighting>RGB 3 color lighting
    Inspection defects coverageless solder, excessive solder, bridging etc
