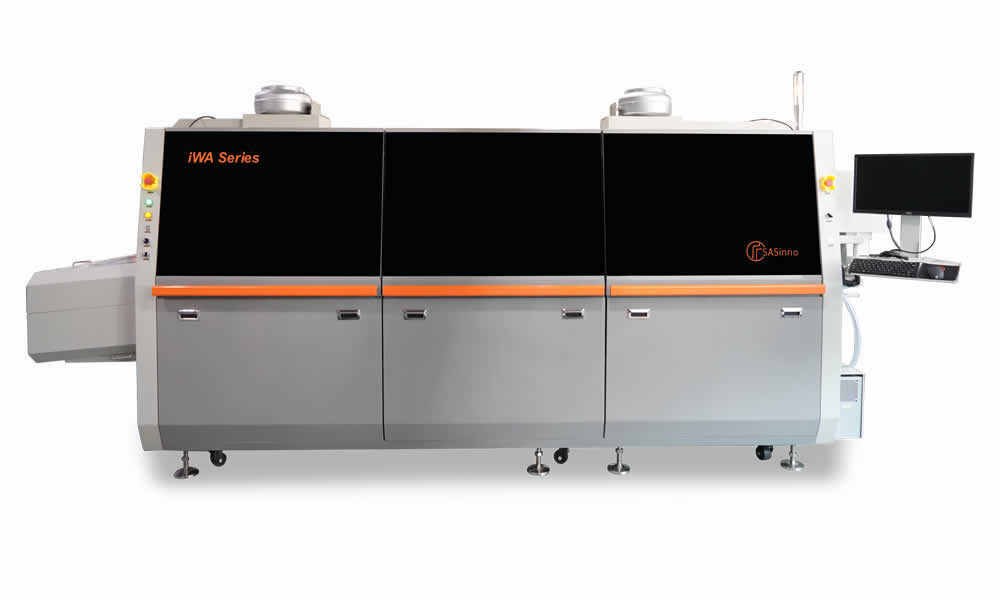

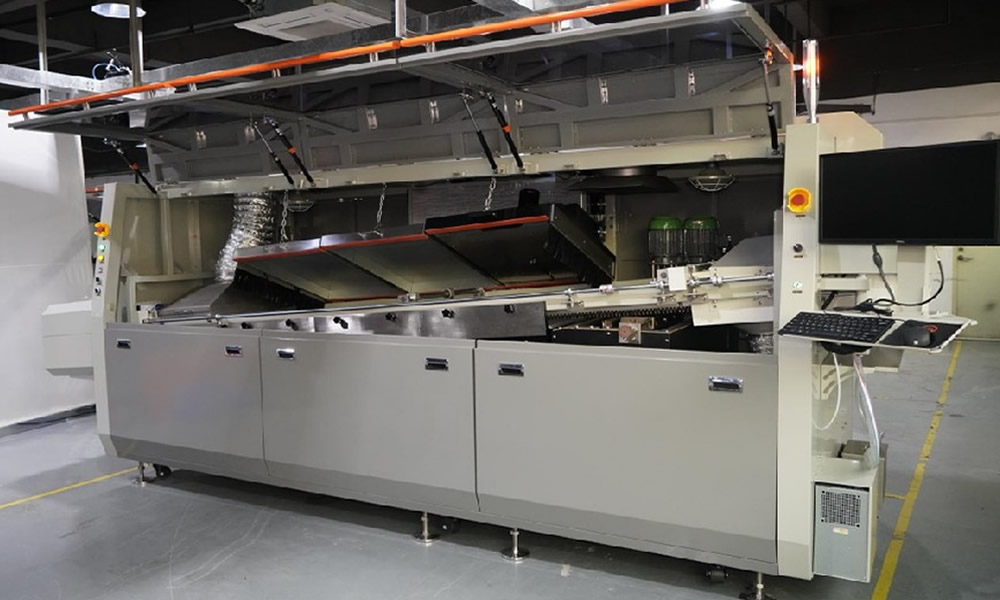

iWA-450/600 Lead Free Wave Solder Machine Features
● PC+PLC control system.
● High quality sprayer driven by stepper motor.
● 3 Bottom preheating zone +1 Top preheating zone.
● Hot air motor speed adjustable.
● Full Titanium dual wave solder pot.
● Solder pot in/out ,up/down automaticlly.
● Heavy duty titanium finger conveyor.
● Max PCB width 450mm.
| iWA-450/600 Specifications | |
|---|---|
| Model | iWA-450/600 |
| PCB width | max 450MM |
| Running power /General power | 12KW/36KW |
| Machine Dimension | 4465(L)*1550(W)*1812(H) |
| Net Weight | 2100KG |
| Controlling System | PC+PLC control |
| Infeeding Conveyor Height | 750mm+/- 20mm |
| Conveyor Speed | 300MM-2000MM/Min |
| Conveyor Type | Heavy duty Ti finger |
| PCB Direction | Left to Right |
| Flux adding | Automatic |
| Spray drive | Stepper motor drive |
| Sprayer | ST-6 spraying nozzle |
| Preheat | 3 bottom hot air convection zone+1 top hot air convection zone |
| Preheat power | 5kw/zone |
| Preheating temperature | Max: 250℃ |
| Length of preheating zone tunnel | 1800mm |
| Solder Pot Volume | Max: 550kg |
| Solder Pot Material | Titanium |
| Solder Pot Temperature | Max: 300℃ |
| Wave Number | Dual Waves |
| Solder Pot Up/Down | Automatically |
| Solder Pot In/Out | Automatically |
| Conveyor Type | Heavy duty V finger |
| Exhausting blower | Standard equipped 2 set, connecting port diameter: 200mm |
| Air Supply | 3-5BAR |
| Power supply | 3PH 380V 50HZ |
