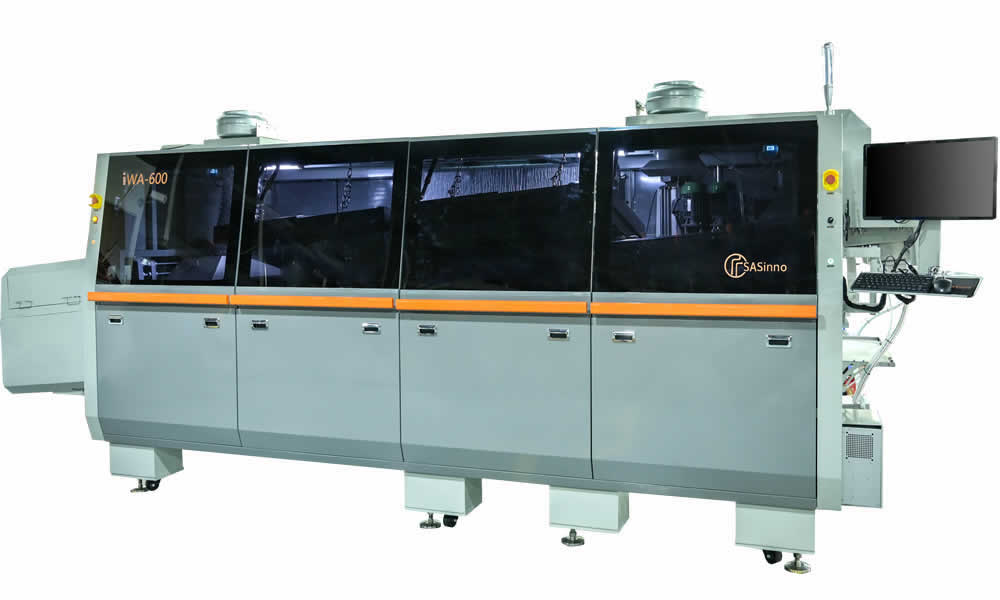

iWA-450/600 Lead Free Wave Solder Machine Brief Description

       ● PC+PLC control system.

       ● High quality sprayer driven by servo motor.

       ● Unique selective fluxing function.

       ● 1.8m or 2.4m preheating zone length.

       ● Preheating hot air speed adjustable by software.

       ● Cast iron coated with ceramic for lead-free application.

       ● Auto solder pot in/out, up/down function.

       ● Heavy duty titanium finger conveyor.

       ● Industry 4.0 capable.

iWa series Lead Free Wave Solder Machine Specifications
    Model iWA-450 iWA-600 iWA-450L iWA-600L
    PCB width max 450MM max 600MM max 450MM max 600MM
    Running power /General power 12KW/36KW 15KW/43KW 14KW/41KW 118KW/50KW
    Machine Dimension 4558(L)*1612(W)*2042(H) 4558(L)*1762(W)*2042(H) 5448(L)*1612(W)*2042(H) 5448(L)*1762(W)*2042(H)
    Net Weight 2100KG 2500KG 2500KG 3000KG
    Controlling System PC+PLC control PC+PLC control PC+PLC control PC+PLC control
    Infeeding Conveyor Height 750mm+/- 20mm 750mm+/- 20mm 750mm+/- 20mm 750mm+/- 20mm
    Conveyor Speed 300MM-2000MM/Min 300MM-2000MM/Min 300MM-2000MM/Min 300MM-2000MM/Min
    Conveyor Type Heavy duty Ti finger Heavy duty Ti finger Heavy duty Ti finger Heavy duty Ti finger
    Conveyor Driver Servo motor drive Servo motor drive Servo motor drive Servo motor drive
    PCB Direction L to R, optional R to L L to R, optional R to L L to R, optional R to L L to R, optional R to L

    Flux adding Automatic Automatic Automatic Automatic
    Spray driver Servo motor drive Servo motor drive Servo motor drive Servo motor drive
    Flux tank level alarm standard standard standard standard
    Fluxing path selectively or full board selectively or full board selectively or full board selectively or full board
    Preheat 3 bottom +1 top hot air convection zone 3 bottom +1 top hot air convection zone 4 bottom +1 top hot air convection zone 4 bottom +1 top hot air convection zone
    Preheat power 5kw/zone 6kw/zone 5kw/zone 6kw/zone
    Preheat temp Max :200℃ Max :200℃ Max :200℃ Max :200℃
    Length of preheating zone 1800mm 1800mm 2400mm 2400mm

    Solder Pot Volume Max: 550kg Max: 700kg Max: 550kg Max: 700kg
    Solder Pot Material cast iron coated with ceramic OR Ti material cast iron coated with ceramic cast iron coated with ceramic OR Ti material cast iron coated with ceramic
    Solder Pot Temperature Max: 300℃ Max: 300℃ Max: 300℃ Max: 300℃
    Wave Number Dual Waves Dual Waves Dual Waves Dual Waves
    Solder Pot Up/Down Automatically Automatically Automatically Automatically
    Solder Pot In/Out Automatically Automatically Automatically Automatically

    Exhausting blower Standard equipped 2 sets, Dia 200mm Standard equipped 2 sets, Dia 200mm Standard equipped 2 sets, Dia 200mm Standard equipped 2 sets, Dia 200mm
    Air Supply 3-5BAR 3-5BAR 3-5BAR 3-5BAR
    Power supply 3PH 380V 50HZ or 3PH 220V 3PH 380V 50HZ or 3PH 220V 3PH 380V 50HZ or 3PH 220V 3PH 380V 50HZ or 3PH 220V
