Highest output, highest ROI, highest flexibility, compact inline system

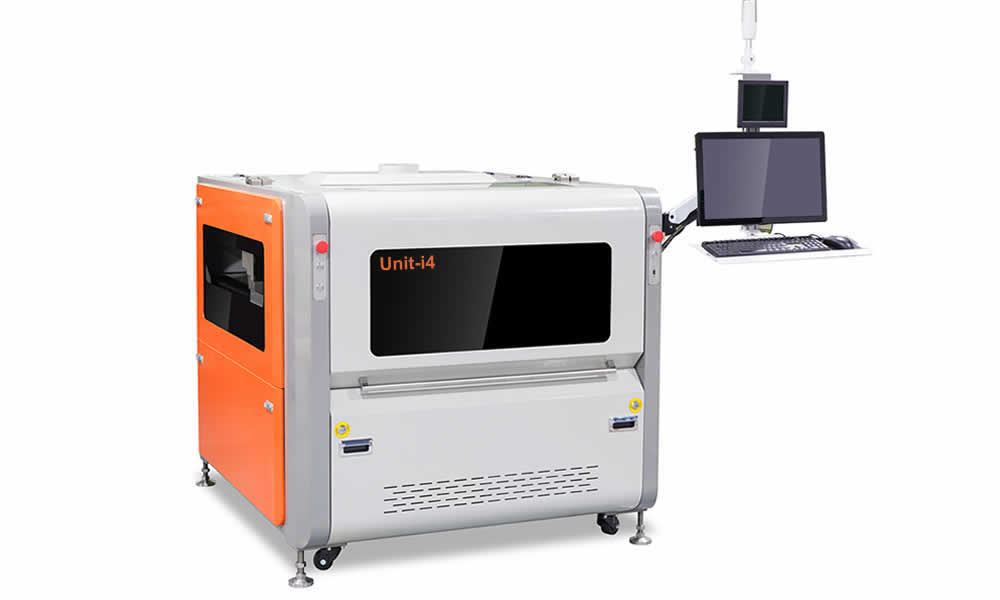

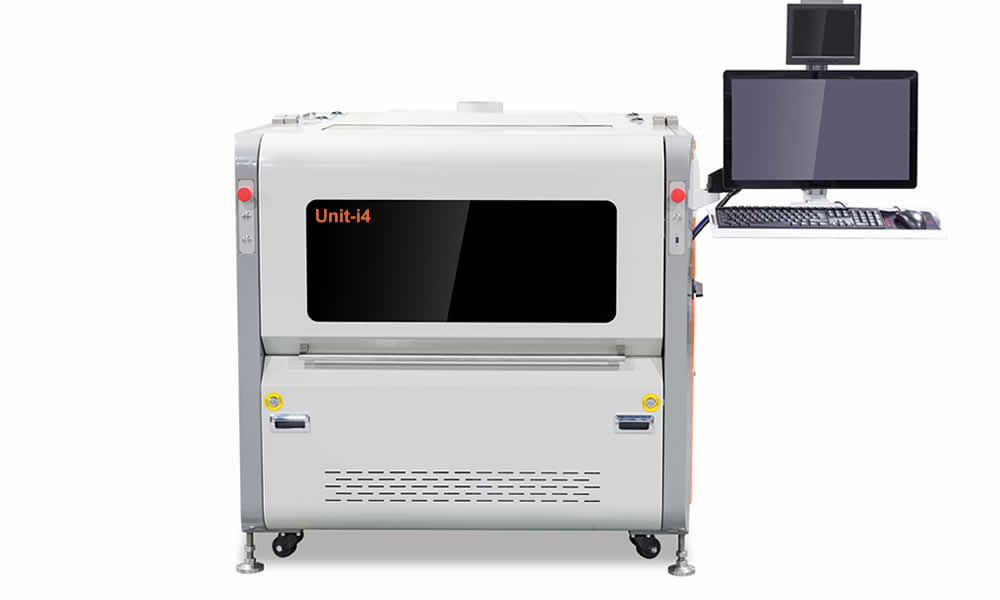

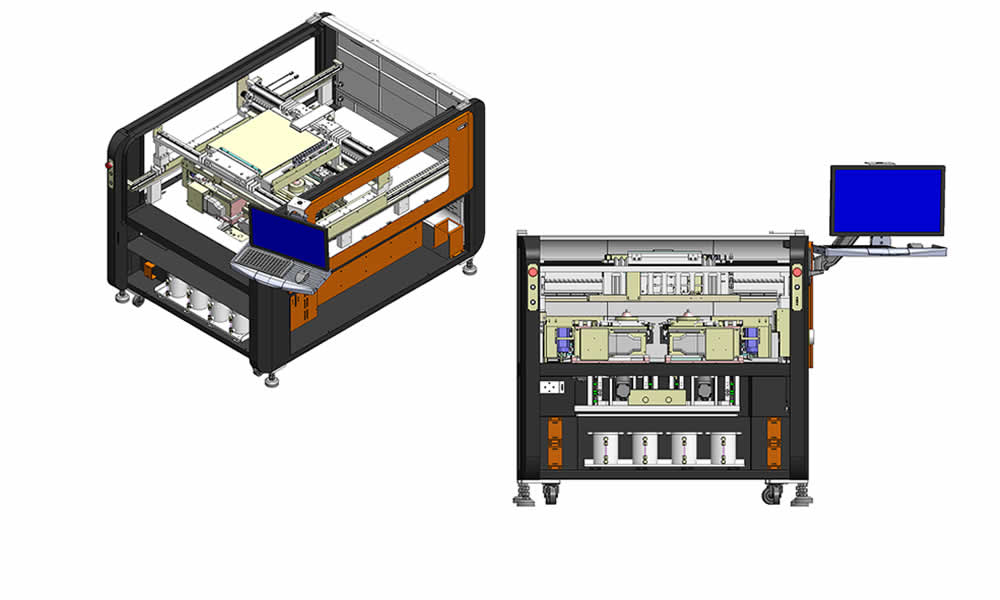

Unit-i4 is a new generation of selective wave soldering with the following features:
2 drop jet fluxers

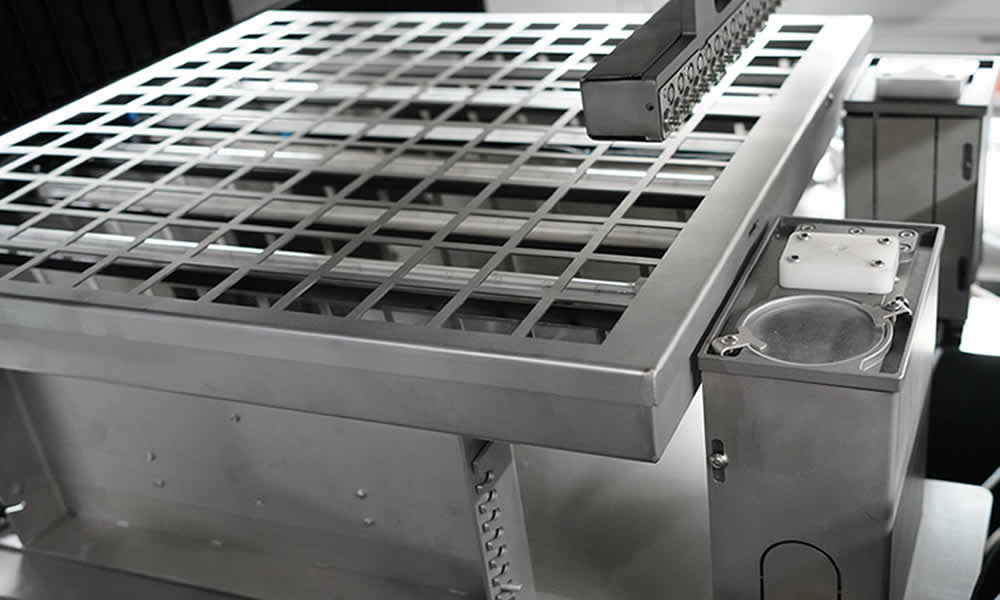

Bottom IR preheating

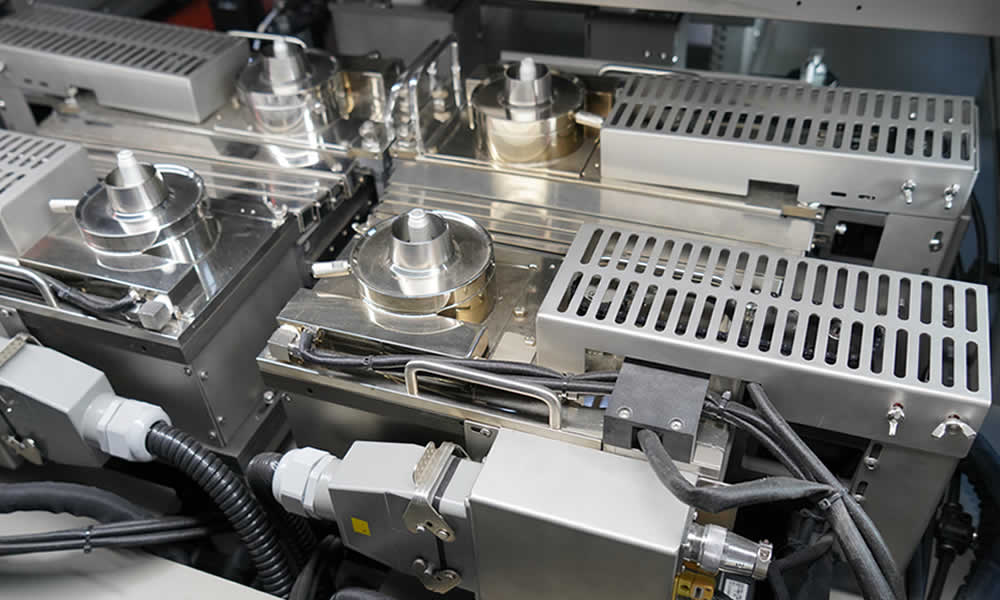

2 solder pots in two individual wave tunnels, each with two wave tunnels

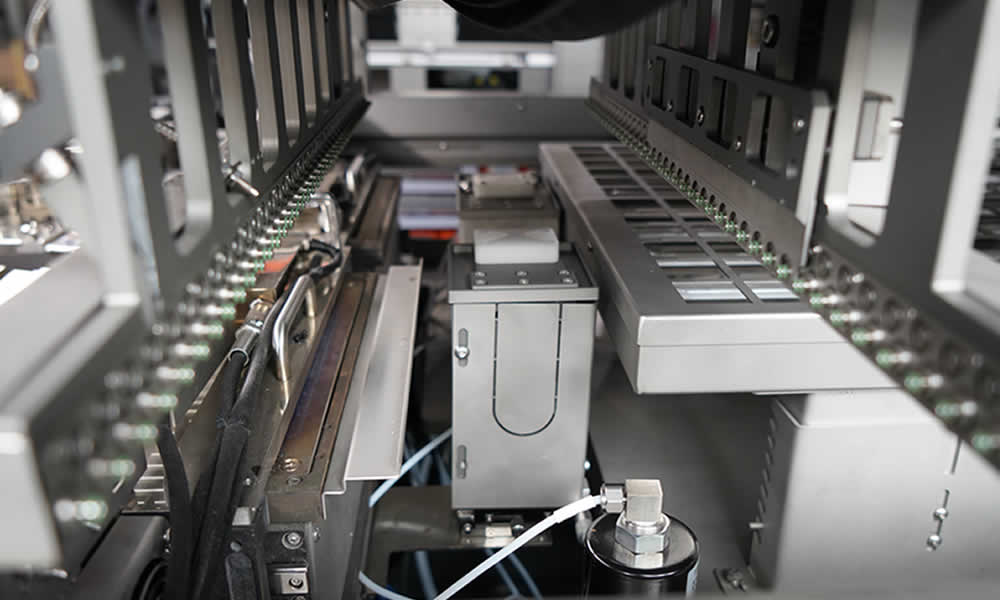

The PCB is moved by a conveyor, the conveyor table moves in X/Y, the solder pot/fluxer movies in Z
Windows 10 system
3-axis full servo drive with ball screw movement
Standard equipped with wave height calibration
Real-time soldering process monitor
| Unit-i4 Specifications | |
|---|---|
| Item | Unit-i4 |
| General | |
| Operating power/Max power | 6KW/22KW |
| Machine dimension | 1300(L)*1840(W)*1200(H) |
| Net weight | 700KG |
| Power supply | 3PH 380V 50HZ |
| Air supply | 3-5 bars |
| Exhausting required | 800M3/h |
| PC | Yes |
| Typical Program Time | 10 Minutes |
| Conveyor | |
| PCB dimension | W50xL50---W508xL508mm(single nozzle soldering) W50xL50---W508xL250mm(two nozzle soldering parally) W50xL50---W250xL250mm(four nozzles soldering parally) |
| PCB Clearance | Top 95mm bottom 30mm |
| PCB Weight | Max 5kg |
| Conveyor width | Auto |
| Conveyor assembling motion | X,Y motion with server motor/driver |
| PCB Robotic Platform | |
| Flux Nozzle Type | Drop jet fluxer |
| Flux Nozzle Quantity | 2 |
| Flux Tank Capacity | 1L |
| Flux Tank Quantity | 2 |
| Flux Nozzle Distance | adjustable |
| Preheat | |
| Preheating method | Bottom IR heater |
| Solder Management | |
| Solder pot type | mechanical pump |
| Standard Solder Stations | 2 |
| Solder Pot Capacity | 30 kgs |
| Solder Temperature Control | PID |
| Heat-UpTime | About 30mins |
| Max Temperature | 350 ℃ |
| Wave tunnel | 4pcs (2pcs per solder pot) |
| Mini Wave Nozzles | Dia 3to12mm |
| Customized nozzle | Available |
| Axes of Motion | Z1, Z2 |
| (N2) Inertion Management | |
| N2 Consumption per Nozzle | 6--8m3/H |
| Required N2 Purity | >99.99% |
