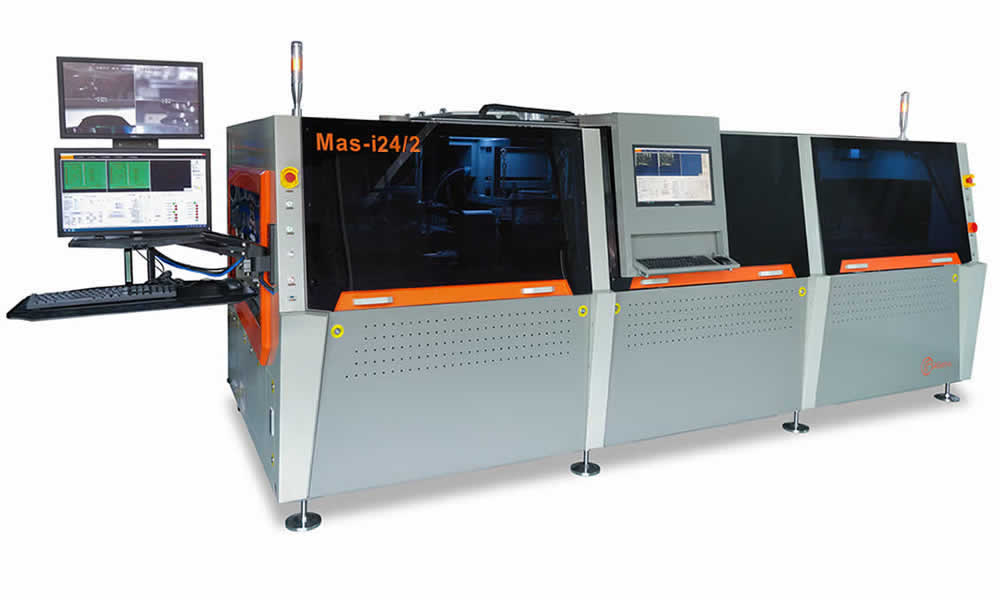

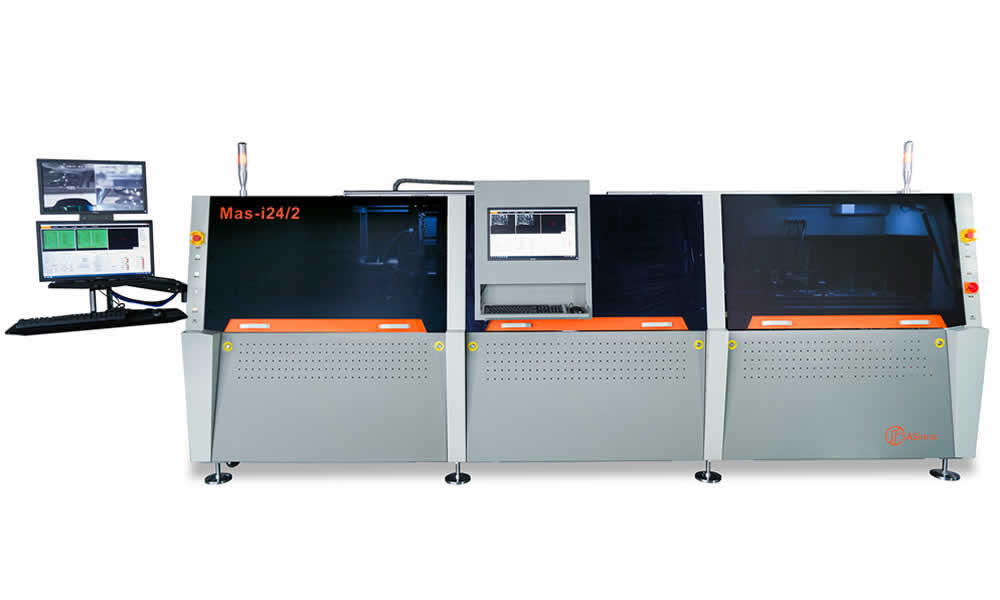

MAS-i24/1 is an inline machine for high output requirements with the following features:

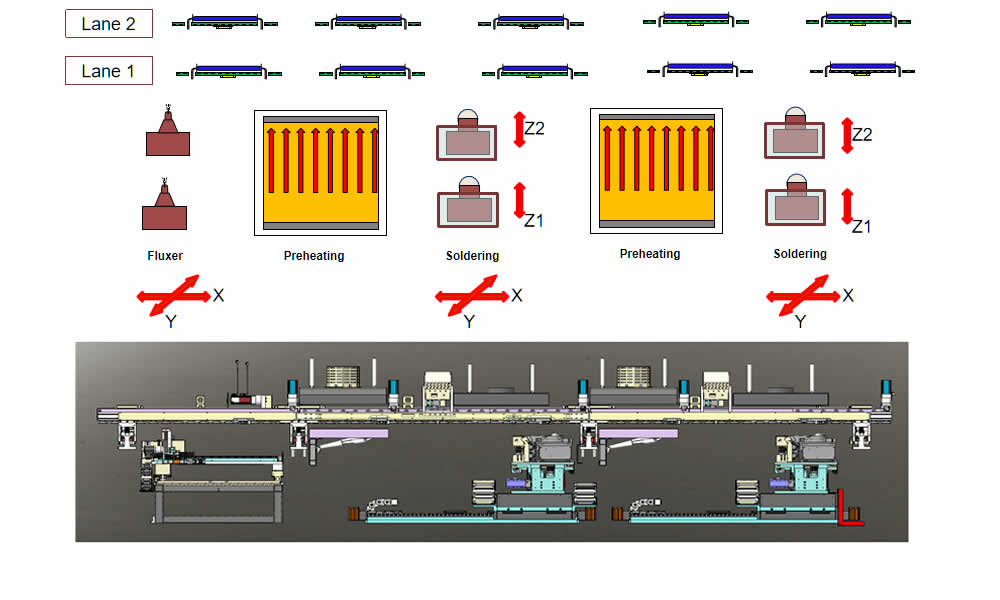

    Dual rail conveyor (Max W320 x L500mm)

    4 individual solder pots

    Can solder for 4 boards at the same time

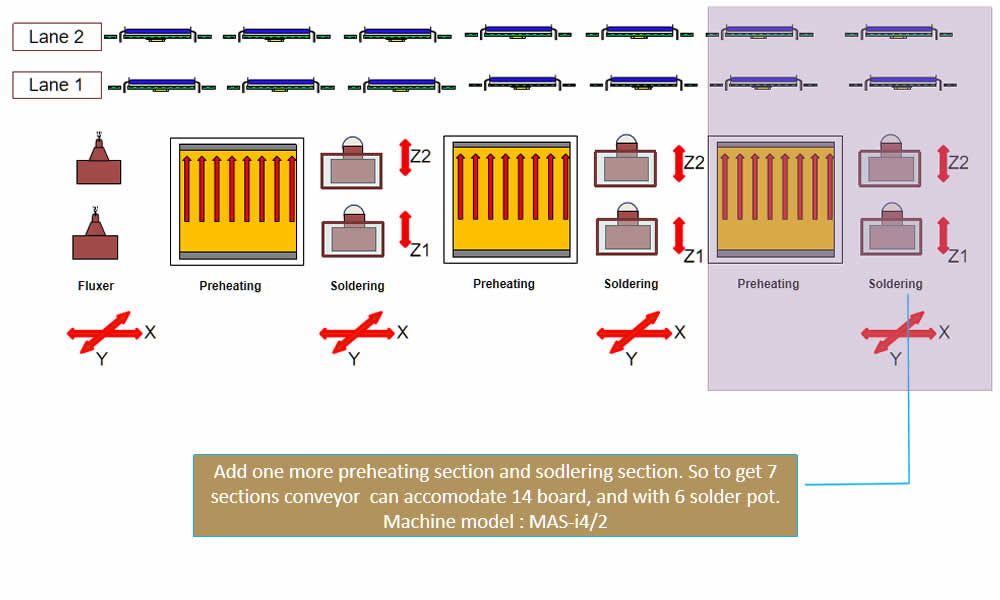

    Expandable for 6 pots

    Heavy load boards ! Can meet Max 20kg load for each product

    High flexibility - use one or both lanes of the conveyor

    Max board can meet W500mm x L500mm

    Windows 10 system

    Real-time soldering process monitor

MAS-i24/1 Specifications
    ItemMAS-i24/1
    General
    Operating power/Max power12KW/36KW
    Machine dimension4700(L)*2050(W)*1720(H)
    Net weight2500KG
    Power supply3PH 380V 50HZ
    Air supply3-5 bars
    Exhausting required1300M3/h
    PCYes
    Typical Program Time10 Minutes
    Conveyor section
    Conveyor laneDual Lane
    MAX PCB (dual lane model)W320xL500mm
    MAX PCB (single lane model)W500xL500mm
    PCB top clearance120mm
    PCB bottom clearance35mm
    Max PCB weight20kgs

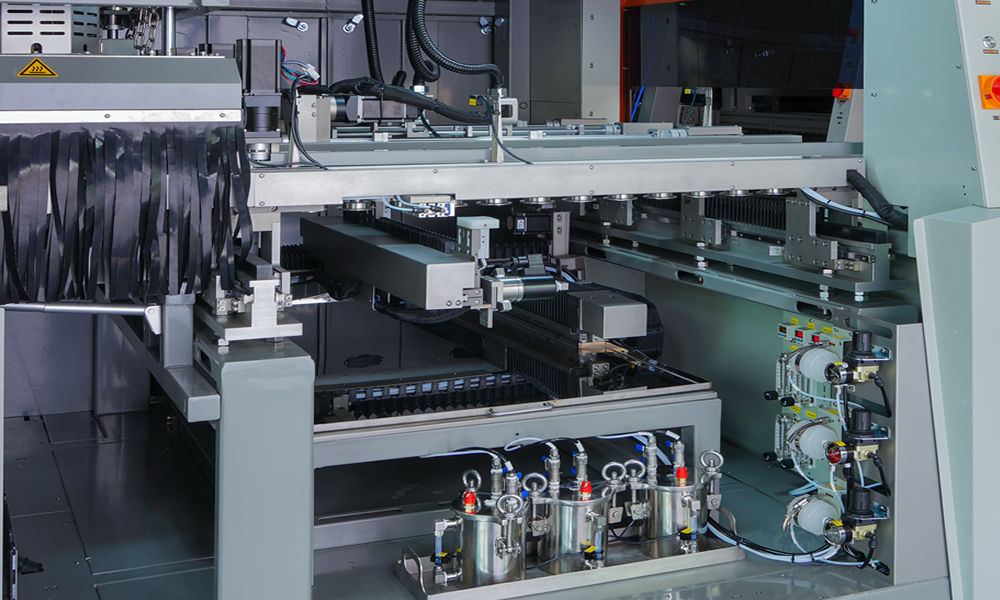

    Selective fluxing table x 1 sets
    Flux Nozzle Typedrop jet fluxer made in Germany
    Flux Nozzle QuantityStandard equip 2 set
    Flux Tank Capacity1L
    Flux Tank Quantity2pcs
    Flux Nozzle Distancewidth adjustable by software
    Axes of MotionX, Y Servo motor
    Position Accuracy+/- 0.05mm

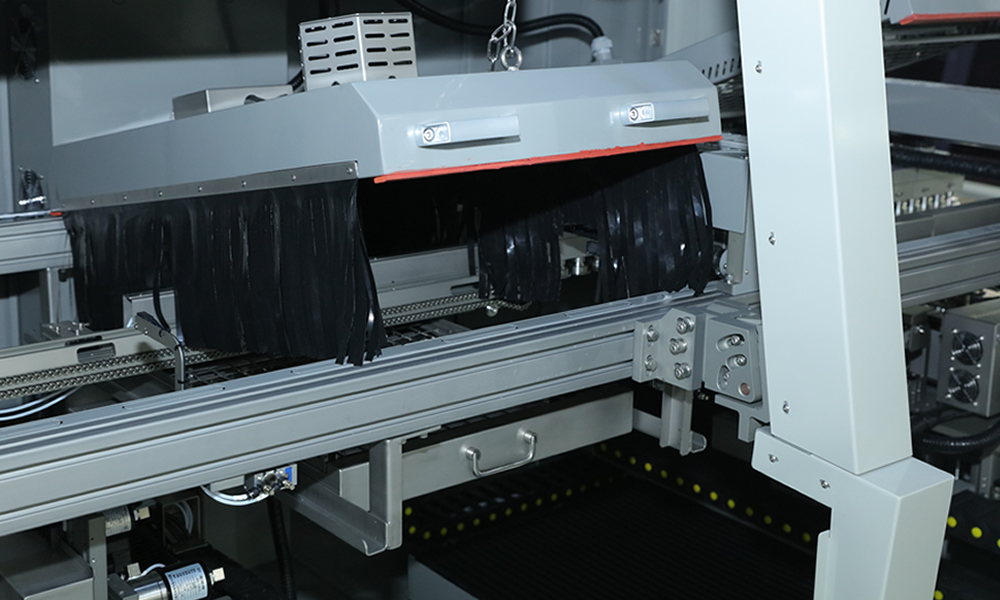

    Preheat section x 2 sets
    Preheating methodTop hot air, bottom IR
    Temperature range25--250c degree

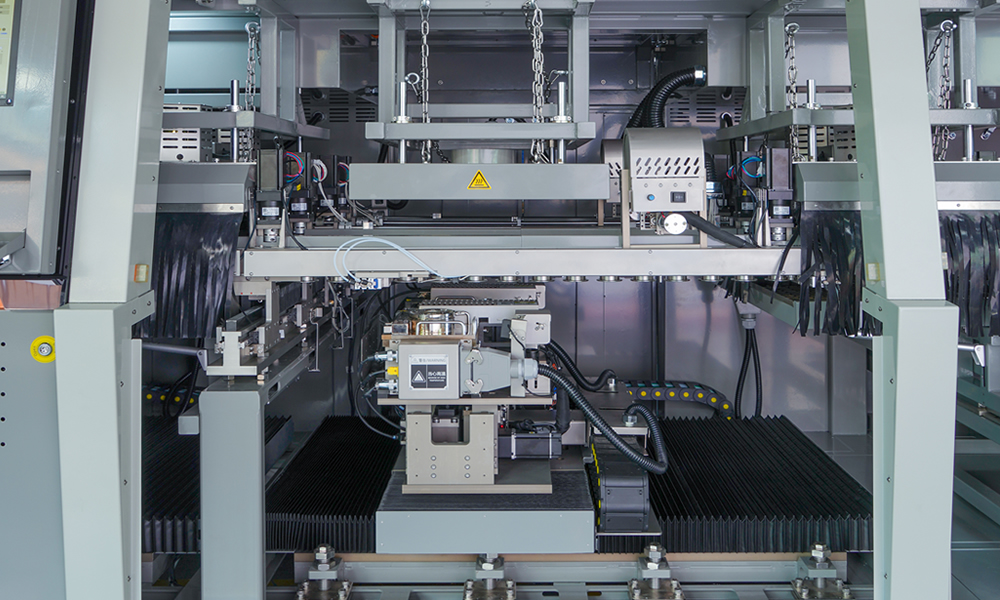

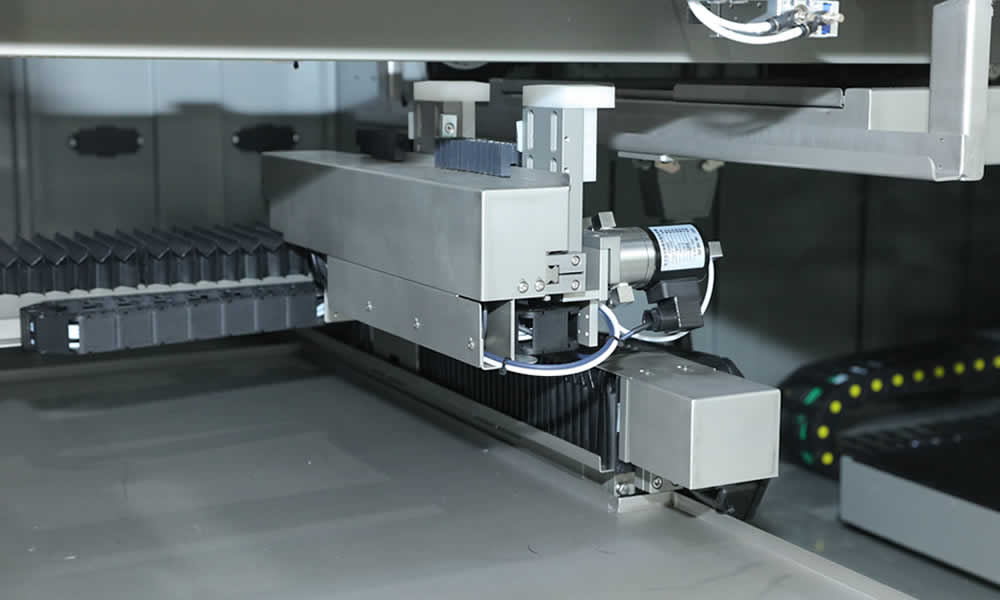

    Selective soldering table x 2 sets
    Solder pot typeStandard equipped mechanical pump
    Solder pot quantity2 individual sets
    Solder Pot Capacity15kgs/pot x 2pots
    Solder Pot distanceSoftware adjustment
    Solder level alarmstandard equipped
    Mini Wave NozzlesDia 4,6,8,10,12MM
    Customized nozzleAvailable
    Motion ControlAll servo control with ball screw
    Position Accuracy+/- 0.05mm
    Top preheatingStandard equipped with IR top preheating
    (N2) Inertion Management
    N2 Consumption per Nozzle1.5m3/H, total 6m3/H (recommend to use SELMATE-8)
    Required N2 Purity>99.99%
